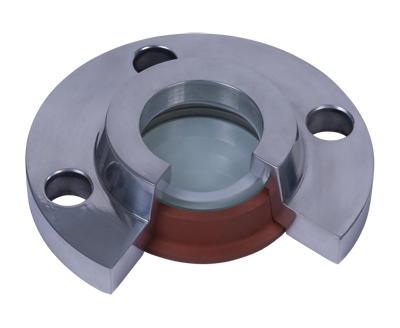

Experience the unparalleled leak resistance, ease of maintenance, and safety in our Model L flange industrial sight window. You will discover that sight glasses that experience high temperature and pressure cycles do not have to leak or be difficult to maintain! Our Model L sight glass features a proprietary sidewall seal that makes it the safest, most user-friendly ASME B16.5 flanged sight glass available. With this unique seal, window re-sealing is safe and easy. Simply torque down the flange bolts to re-seal the window; it is essentially impossible to damage the glass by over-torquing the bolts. Our laminated glass options ensure total safety even when one of the glass layers is cracked; the remaining layer is capable of holding maximum rated conditions indefinitely with full design margin of safety

The Model L is available in configurations that will withstand temperatures from cryogenic to 450F, and full vacuum to 150 PSI. It really shines in high temperature and pressure conditions; it does not spring leaks like typical gasket sealed windows. Flange bodies can be supplied with carbon steel or stainless steel, and mill test reports are included. The glass pane can be made of tempered soda lime, tempered borosilicate or fused quartz. Laminated glass is available in tempered borosilicate and tempered soda lime. We stock our Model L industrial sight glass for ASME B16.5 flange sizes of 2, 3, 4, 6, and 8 inches.

Visit our web site for detailed information and specifications.

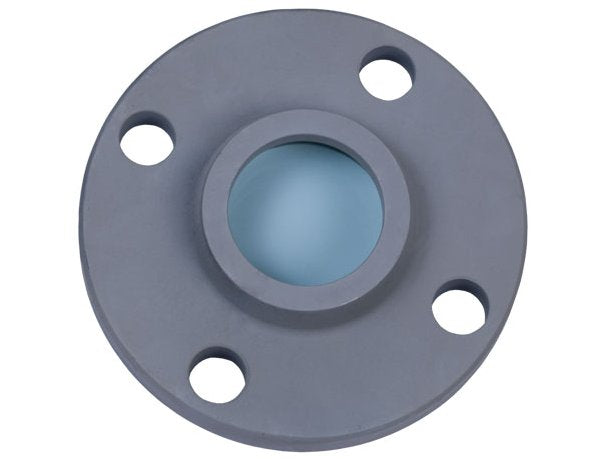

Model L Flange Sight Glass Window

Model L Flange Sight Glass Window

Regular price $185.18 USD
Regular price Sale price $185.18 USD
Sale Sold out
Title

Experience the unparalleled leak resistance, ease of maintenance, and safety in our Model L flange industrial sight window. You will discover that sight glasses that experience high temperature and pressure cycles do not have to leak or be difficult to maintain! Our Model L sight glass features a proprietary sidewall seal that makes it the safest, most user-friendly ASME B16.5 flanged sight glass available. With this unique seal, window re-sealing is safe and easy. Simply torque down the flange bolts to re-seal the window; it is essentially impossible to damage the glass by over-torquing the bolts. Our laminated glass options ensure total safety even when one of the glass layers is cracked; the remaining layer is capable of holding maximum rated conditions indefinitely with full design margin of safety

The Model L is available in configurations that will withstand temperatures from cryogenic to 450F, and full vacuum to 150 PSI. It really shines in high temperature and pressure conditions; it does not spring leaks like typical gasket sealed windows. Flange bodies can be supplied with carbon steel or stainless steel, and mill test reports are included. The glass pane can be made of tempered soda lime, tempered borosilicate or fused quartz. Laminated glass is available in tempered borosilicate and tempered soda lime. We stock our Model L industrial sight glass for ASME B16.5 flange sizes of 2, 3, 4, 6, and 8 inches.

Visit our web site for detailed information and specifications.
View full details
Our company has real engineers on staff for consultation and support. There is instant access to price and support information documents in PDF form for all available combinations of glass, metal, and seals through our selection menu on the upper of this page. Popular combinations of our sight glass window have certification from Factory Mutual, and Pressure Products Company holds TUV certification for manufacturing sight glasses that can be used in areas governed by the European Union's Pressure Equipment Directive.

If you need special materials or custom specifications for your industrial sight glass, our engineers can provide guidance or design custom units. Ask for a quote today. Even higher pressure and temperatures ratings are available from other models and custom designs. Model L sight glasses are made in the USA, ensuring the highest quality and reliability for your industrial applications.

Tell Us About Your Application
Contact us today.

Get Help Selecting the Right Sight Flow Indicator from Our Engineers.

Tell us as much about your process (pressure, temperature, connection type, size, etc.) as you want and we will get back to you with pricing and engineering specs.
